What are the common problems of laser welding machine

2024/06/26 14:01

As an advanced welding method, laser welding machine is used in all walks of life. During the use of laser welding machine, there will always be some large and small faults. The following summarizes the common faults and solutions of laser welding machine.

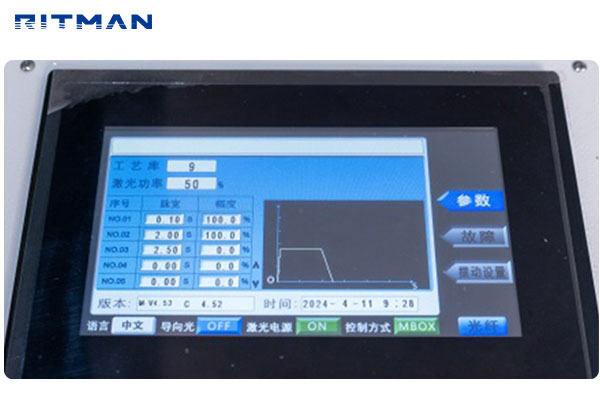

Fault 1. The screen of laser welding machine is in black screen state

There is a problem with the screen of laser welding machine. Find the cause in time, repair or replace the screen.

Fault 2. The penetration depth of laser welding machine is not enough

1) The laser energy is not enough, which can be solved by increasing the pulse width and current.

2) The defocus of the focusing mirror is incorrect. The defocus should be adjusted to a position close to the focal point (but no splashes should be generated).

What are the common problems of laser welding machine

Fault 3: The main machine of the laser welding machine is in a shaking state during use

The footrest under the laser welding machine is not fixed, or only part of it is fixed. Solution: fix the base of the laser welding machine

Fault 4: Cracks appear on the workpiece when the laser welding machine is welding

1) The flow rate of the shielding gas is too large. The flow rate of the shielding gas can be reduced to solve the problem.

2) The cooling speed of the workpiece is too fast. The temperature of the cooling water on the fixture should be adjusted to increase the water temperature.

3) The workpiece is not cleaned clean. In this case, the workpiece needs to be cleaned again.

4) The matching gap between the workpieces is too large or there are burrs. The processing accuracy of the workpiece should be improved.

What are the common problems of laser welding machine

Fault 5: The flame weakens when the laser welding machine is welding

1) The laser of the main light path is offset. Solution: adjust the full reflection and semi-reflection diaphragms of the main light path, and use photo paper to check and adjust the circular spot.

2) The cooling water is polluted or the cooling water has not been replaced for a long time. Solution: Replace the cooling water and clean the UV filter glass tube and xenon lamp.

3) The focusing lens or the resonant cavity diaphragm of the laser is damaged or contaminated. Solution: replace or clean the focusing lens and the resonant cavity reflective diaphragm.

4) The laser is not output from the center of the copper nozzle under the focusing head. Solution: adjust the 45-degree reflective diaphragm to make the laser output from the center of the nozzle.

5) The shutter is not fully opened. Solution: check and add lubricating oil to the shutter connector to make the connector mechanically smooth.

6) The shielding gas is too large. Solution: adjust the gas flow of the shielding gas.

What are the common problems of laser welding machine

Fault 6: The weld seam of the laser welding machine is very black

1) The airflow direction of the shielding gas is wrong. Solution: make the airflow direction of the shielding gas opposite to the movement direction of the workpiece.

2) The nitrogen is not turned on. Solution: turn on the nitrogen.

In addition to the above six common faults of laser welding machines, there are many other faults. When the operator of the laser welding machine encounters a fault that cannot be handled, he should contact the manufacturer in time to solve it. Ritman laser welding machine responds to after-sales service 24 hours a day to solve problems. It is the leading after-sales service in the same industry. Choose a laser welding machine and look for Ritman laser.
