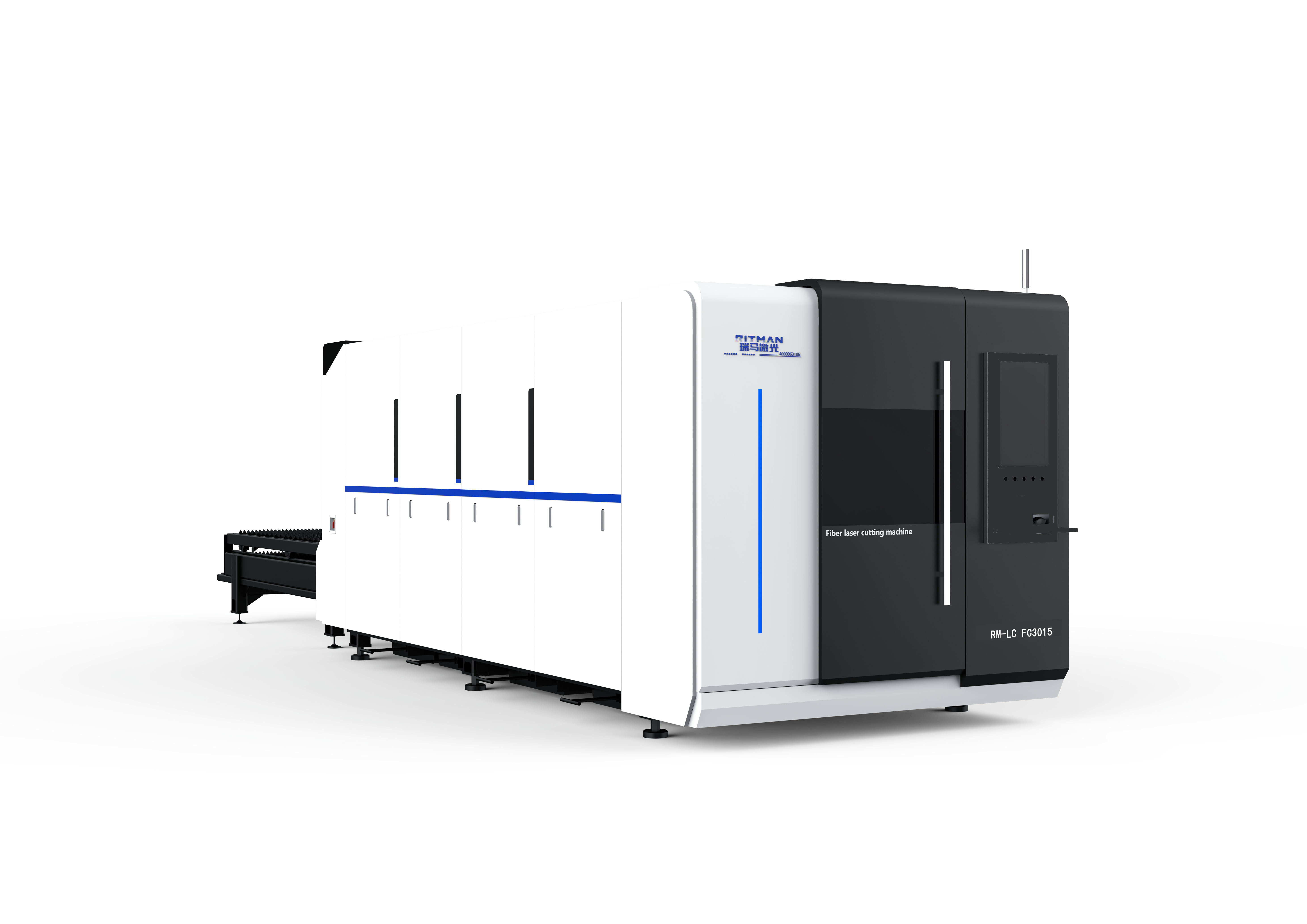

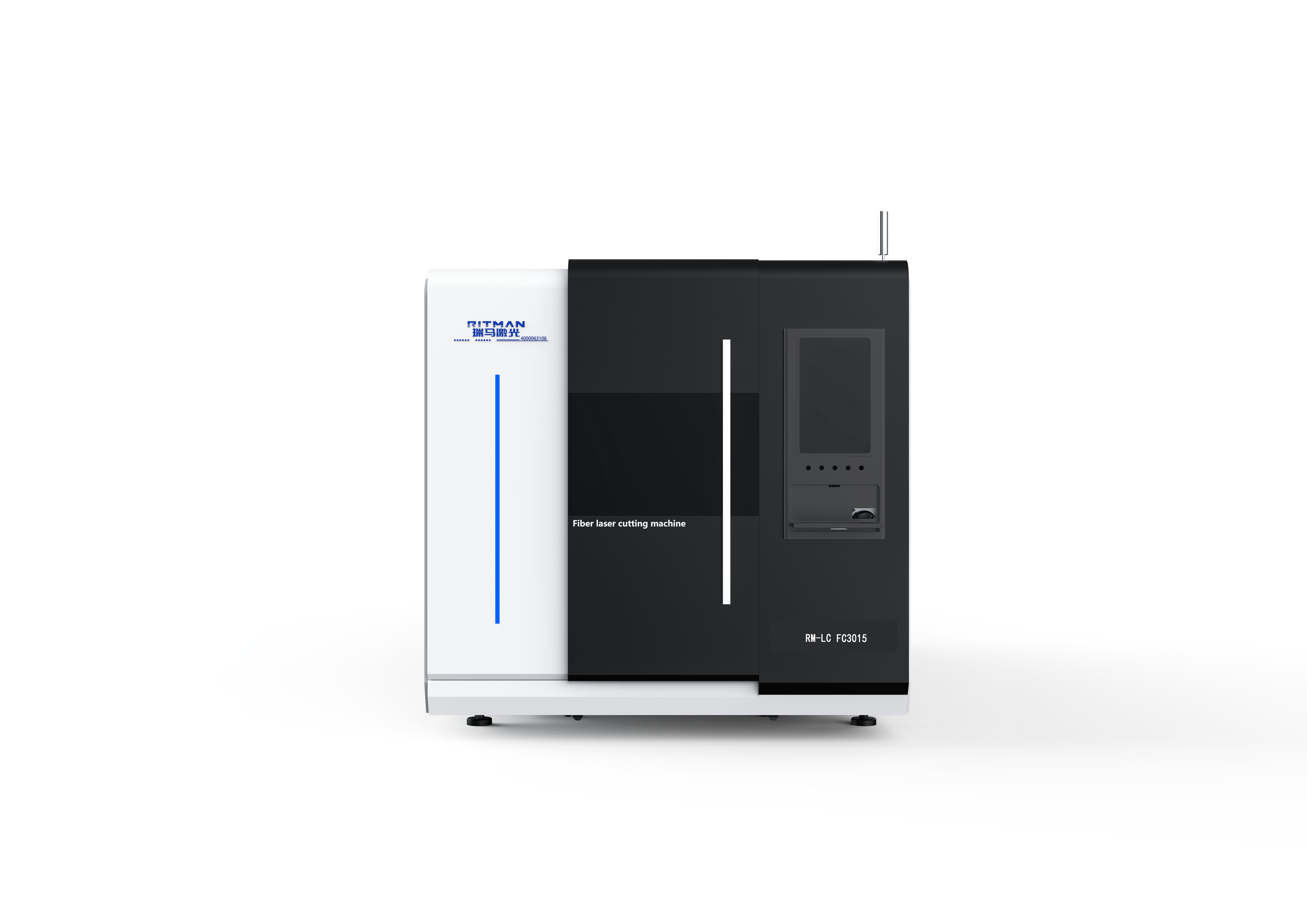

Exchange Platform Sheet Laser Cutting Machine

Features

The Luban lock-type mortise and tenon structure is welded, subjected to secondary aging residual stress treatment and ultra-finishing processing on a precision gantry milling machine. Each steel plate and each section of steel pipe is crafted with the spirit of craftsman, ensuring the product's excellent dynamic and static characteristics, rigidity, strength, Stability increased by more than 30% year-on-year.


The beam adopts aviation extruded aluminum beam, which is light weight and has high dynamic performance, improving efficient movement speed and acceleration.


The one-piece Z-axis body is welded with aluminum alloy plates and matched with precision screw module transmission, which has high precision and fast speed.


  Contact Now Pdf Download
Product Details

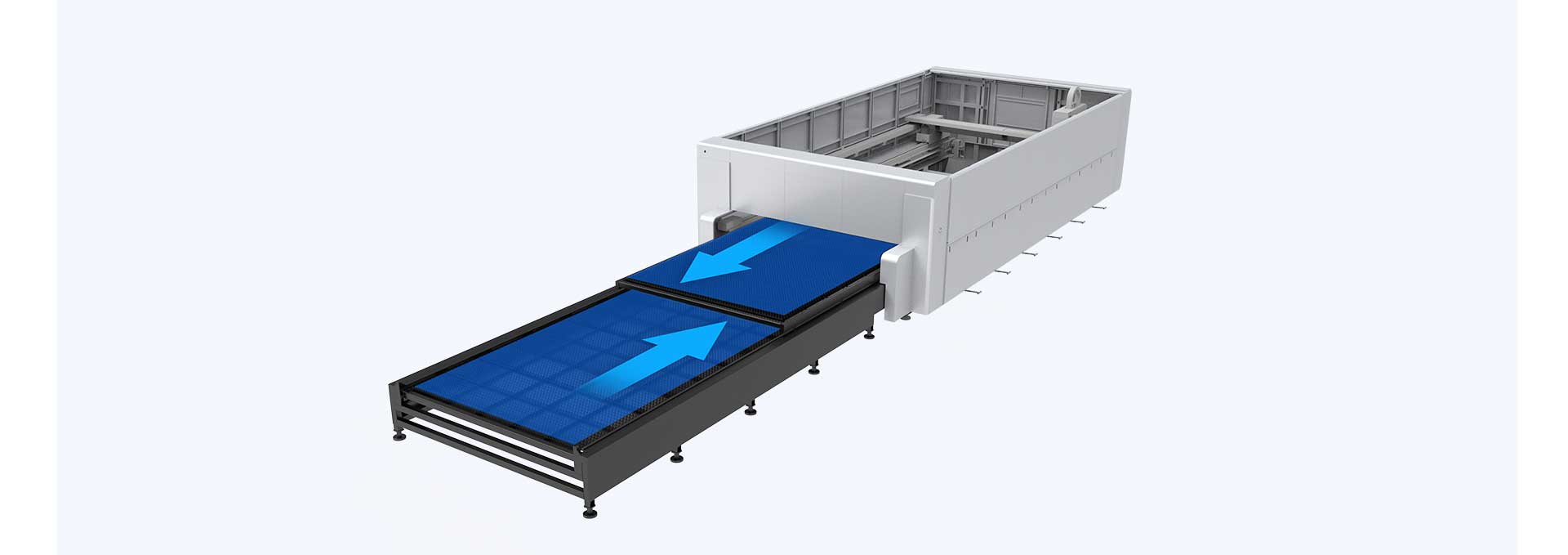

Exchange Workbench

The exchange workbench mainly consists of a main frame and a supporting material rackAdopting folding welding and then overall welding to form, it has good rigidity, highstrength, and large load-bearing capacity.

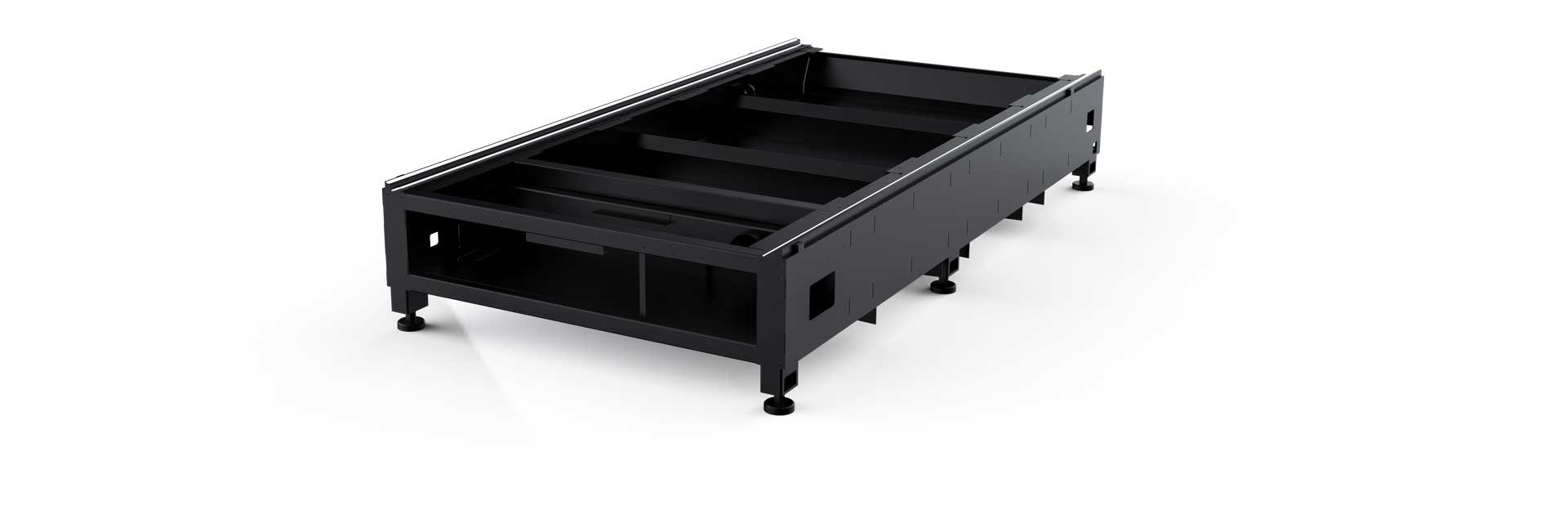

High Strength Mortise AndTenon

 Welded Bed Body

Welding of mortise and tenon structure, secondary aging residual stress treatment, andprecision gantry milling machine ultra precision machining have increased rigidity,strength,and stability by more than 30% year-on-year.


Aviation Extruded Aluminum

Crossbeam

Adopting aviation extruded aluminum crossbeam, it is lightweight and hashigh-performance dynamic performance, improving efficient motion speed andacceleration.



Partition Dust Remova

The exchange workbench mainly consists of a main frame and a supporting material rackAdopting folding welding and then overall welding to form, it has good rigidity, highstrength, and large load-bearing capacity.



fc_07.jpgTechnical Parameters

RM-LC FC

Model

RM-LC FC3015

RM-LC FC4020

RM-LC FC6020

RM-LC FC6025

RM-LC FC8025

RM-LC FC12025

Power

3KW-20KW

3KW-20KW

3KW-60KW

3KW-60KW

3KW-60KW

12KW-120KW

Processing format

3000mmx1500mm

4000mmx2000mm

6000mmx2000mm

6000mmx2500mm

8000mmx2500mm

12000mmx2500mm

Acceleration

1.5G

1.5G

1.5G

1.5G

1.5G

1.5G

Max. No-load Speed

140m/min

140m/min

140m/min

140m/min

140m/min

140m/min

Positioning Accuracy

±0.05mm

±0.05mm

±0.05mm

±0.05mm

±0.05mm

±0.05mm

Repositioning Accuracy

±0.03mm

±0.03mm

±0.03mm

±0.03mm

±0.03mm

±0.03mm
